Spray Controllers

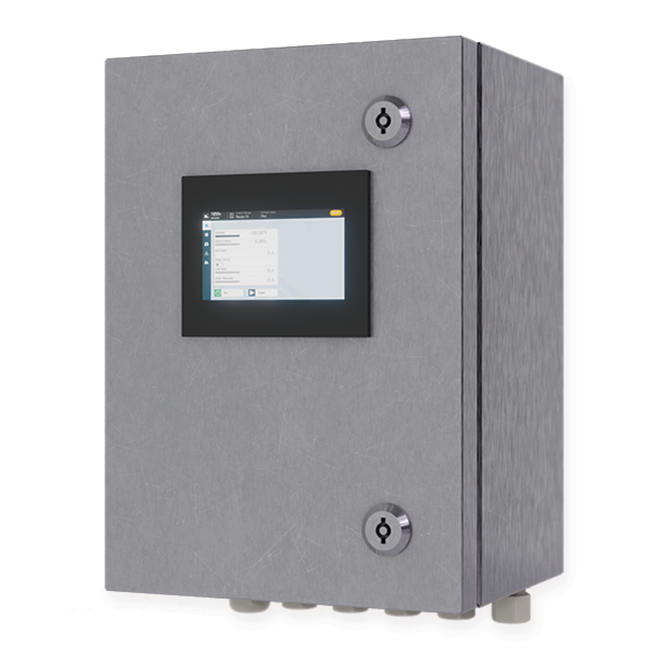

AutoJet® E250+ Spray Controller
Spray Controllers
AutoJet® E250+ Spray Controller
Basic timing control over your air- and electrically-actuated spray nozzles can be achieved with the AutoJet® E250+ Spray Controller from Spraying Systems Co.
- 2 timing channels with each:
- Trigger input
- 1 automatic spray nozzle/cylinder air outputs
- 1 atomizing air solenoid valve output with anticipator/follower timing or, alternatively, to connect a 2nd electrical spray nozzle.
- Control up to 4 electrically-actuated spray nozzles via the intuitive user interface
- 20 timing recipes with delay and spray times that can be set with a resolution of 0.1s
- Up to 6 objects can be remembered between trigger sensor and automatic spray nozzle position
- Fault output:
- Empty tank
- Too many triggers
- Automatic tankfilling
- Tank filling output to control a valve to fill the tank
- 3 level sensor inputs: Low - High - Overflow
- Fast repeat cycle up to 5HZ
- Easy set-up
