Systems for food applications
AutoJet® PXD-50
Systems for food applications
AutoJet® PXD-50
The AutoJet® PXD-50 is a Spray System with Diaphragm Pump, 50 Liter Open Tank and PLC/2850+ controllerThe AutoJet® PXD-50 is ideal for all kinds of coatings of low-viscous liquids using PulsaJet® spray nozzles or any automatic spray nozzle by Spraying Systems Co. The combination of external signals allows precise application rate control.
![AutoJet PXD-50](/el-gr/-/media/dam/industrial/europe/website-images/other/other_autojet_pxd-50-660x660.jpg?h=660&w=660&la=el-GR&hash=1EBAED0FA662A6F4A6329A4CF96AF162)

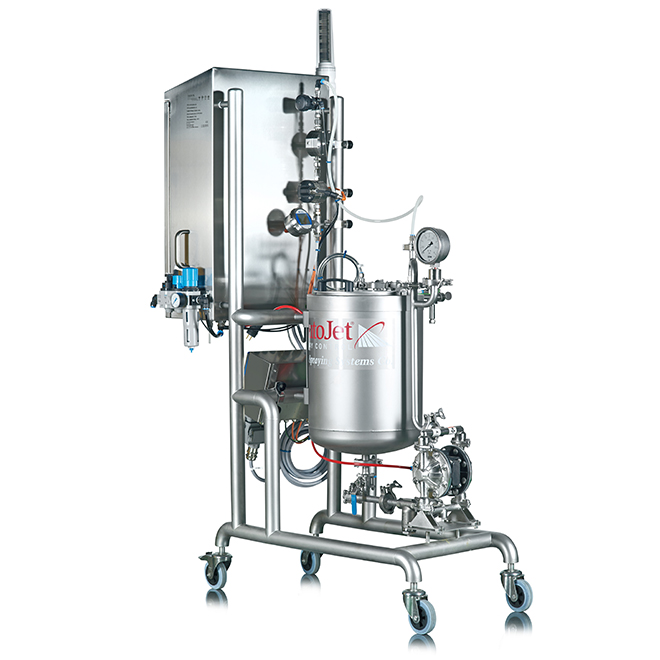

AutoJet® PXD-50 Spray System with Diaphragm Pump, 50 Liter Open Tank and PLC/2850+ Controller
- Open tank 50 liter
- Control panel:
- PLC/2850+ Controller
- Electronic pressure regulation for pump
- Electronic liquid pressure regulator
- Low level switch
- Flow meter for liquid (optional)
- Diaphragm pressure pump
- 1 flexible hose 1500mm
- Atex rated version available
- PWM Modes:
- Fixed duty cycle
- Grams per square centimeter
- Grams per cavity
- Constant flow
- Consumables:
- Compressed air
- Electricity (230 VAC)
- Input:
- Trigger signal
- Speed signal
- Output: Up to 8 PulsaJet® Nozzles, fault signal
Ideal for these applications:
Release Agent
![Release Agent](/el-gr/-/media/dam/industrial/europe/website-images/products---static-other-sizes/featured_card_release_agent-612x400.jpg?h=400&w=612&la=el-GR&hash=5591C85323CBA62ACCA8F8F17AB6588A)
Ethanol/Aroma
![Ethanol Aroma](/el-gr/-/media/dam/industrial/europe/website-images/products---static-other-sizes/featured_card_ethanol_aroma-612x400.jpg?h=400&w=612&la=el-GR&hash=F9944A4416D459D9EAE06800D5EC225D)
Food Safety
![Food Safety Sausage](/el-gr/-/media/dam/industrial/europe/website-images/products---static-other-sizes/featured_card_food_safety_sausage-612x400.jpg?h=400&w=612&la=el-GR&hash=E66E76123FD4285238404BADC3A9F415)
Seed Adhesion
![Seed Adhesion](/el-gr/-/media/dam/industrial/europe/website-images/products---static-other-sizes/featured_card_seed_adhesion-612x400.jpg?h=400&w=612&la=el-GR&hash=786B724BDE9A9341B9500C8ED9BC6504)
