Systems for food applications

AutoJet® PXD-50

Systems for food applications

AutoJet® PXD-50

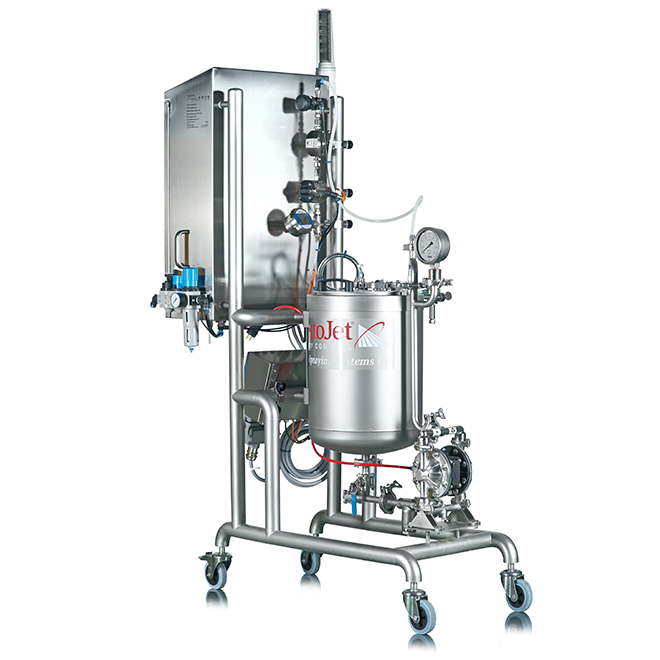

The AutoJet® PXD-50 is a Spray System with Diaphragm Pump, 50 Liter Open Tank and PLC/2850+ controller

The AutoJet® PXD-50 is ideal for all kinds of coatings of low-viscous liquids using PulsaJet® spray nozzles or any automatic spray nozzle by Spraying Systems Co. The combination of external signals allows precise application rate control.

AutoJet PXD-50

AutoJet® PXD-50 Spray System with Diaphragm Pump, 50 Liter Open Tank and PLC/2850+ Controller

  • Open tank 50 liter
  • Control panel:
    • PLC/2850+ Controller
    • Electronic pressure regulation for pump
    • Electronic liquid pressure regulator
    • Low level switch
  • Flow meter for liquid (optional)
  • Diaphragm pressure pump
  • 1 flexible hose 1500mm
  • Atex rated version available
  • PWM Modes:
    • Fixed duty cycle
    • Grams per square centimeter
    • Grams per cavity
    • Constant flow
  • Consumables:
    • Compressed air
    • Electricity (230 VAC)
  • Input:
    • Trigger signal
    • Speed signal
  • Output: Up to 8 PulsaJet® Nozzles, fault signal

Ideal for these applications:

Release Agent

Release Agent

Ethanol/Aroma

Ethanol Aroma

Food Safety

Food Safety Sausage

Seed Adhesion

Seed Adhesion
Find the AutoJet® Food System that's right for your application Talk to an expert
