Systems for food applications
AutoJet® PH-30/50
Systems for food applications
AutoJet® PH-30/50
The AutoJet® PH-30/50 Modular Heated Spray System with PLC Controller and 30 liter or 50 liter pressure tank.The AutoJet® PH-30/50 is ideal for all kinds of coatings including viscous liquids using PulsaJet® spray nozzles or any automatic spray nozzle by Spraying Systems Co. External line speed signals (frequency) can be connected for automatic control of application rate.
![AutoJet PH-30-50-1](/en-ae/-/media/dam/industrial/europe/website-images/other/other_autojet_ph-30-50-1-660x660.jpg?h=660&w=660&la=en-AE&hash=1C3D3D00AF4AE873D240767A587F2D61)

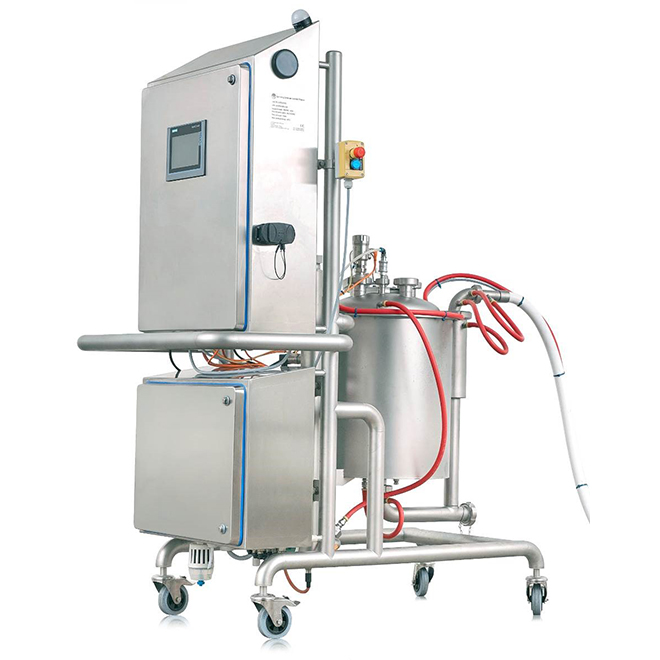

AutoJet® PH-30/50 Modular Spray System with PLC Controller and 30 Liter or 50 Liter Pressure Tank
- PLC/2850+ Spray controller
- 30 liter or 50 liter pressure tank
- Electronic liquid tank pressure regulation
- Electronic atomizing air pressure regulation
- Temperature control (optional)
- Internal water heating circuit
- External water cooling circuit
- Automatic refill (optional)
- Analog level control (optional)
- PWM Modes:
- Fixed duty cycle
- Grams per centimeter
- Grams per cavity
- Contstant flow
- Consumables:
- Compressed air
- Electricity (480 VAC)
- Input: Speed signal, trigger signal, remote setpoint, ...
- Output: Signal for up to 8 PulsaJet® nozzles, air atomizing spray nozzles, fault signal, ...
Ideal for these applications:
Release Agent
![Release Agent](/en-ae/-/media/dam/industrial/europe/website-images/products---static-other-sizes/featured_card_release_agent-612x400.jpg?h=400&w=612&la=en-AE&hash=307948F133D82459F000801E5063B3EF)
Glazing Buns
![Glazing Buns](/en-ae/-/media/dam/industrial/europe/website-images/products---static-other-sizes/featured_card_glazing_buns-612x400.jpg?h=400&w=612&la=en-AE&hash=1D64771AFF8C5B546037C56697961FA2)
Applying Butter
![Applying Butter](/en-ae/-/media/dam/industrial/europe/website-images/products---static-other-sizes/featured_card_applying_butter-612x400.jpg?h=400&w=612&la=en-AE&hash=57DE6A1CB6C292E94FEB06229A69EE87)
Sugar Coating
![Sugar Coating](/en-ae/-/media/dam/industrial/europe/website-images/products---static-other-sizes/featured_card_sugar_coating-612x400.jpg?h=400&w=612&la=en-AE&hash=9AE8F638AB8C171A8ABCA60D71FCD5F8)
