AutoJet® E2150+ Spray Controller
AutoJet® E2150+ Spray Controller
Improve the performance of PulsaJet® spray nozzles with the AutoJet® E2150+ Spray Controller and onboard timing control software from Spraying Systems Co.Advanced Spray Control with AutoJet® E2150+ Spray Controller
Elevate PulsaJet® spray nozzle performance with the AutoJet® E2150+ Spray Controller from Spraying Systems Co., designed for advanced control and efficient resource utilization. Capable of managing up to 16 PulsaJet® nozzles, this controller ensures accurate spray placement through monitoring of pre-set variables, ideal for coating, conveyor spraying, lubricating, and marking applications. Adjust flow rates based on changing conditions like belt speed and pressure fluctuations to maintain high-quality results. Features include one flowmeter per channel for precise spraying, automatic liquid and air pressure control, and Profinet support for seamless PLC integration. The AutoJet® E2150+ is a versatile system, ready to enhance any autonomous or integrated process control system.
![Other_AutoJet_2150-660x660_V2](/en-ae/-/media/dam/industrial/europe/website-images/other/other_autojet_2150-660x660_v2.png?h=660&w=660&la=en-AE&hash=F46B44F18CC18B197F2752D4A0061767)
In combination with the PulsaJet® automatic nozzle the system achieves very high cycling speeds.
This allows adjustment of the flow rate based on changing operating conditions such as:
- Belt speed
- Pressure fluctuations
- Product change
- Recipes
- ... and much more
The automatic spray nozzles can be controlled via a single channel (with a maximum of 16 nozzles) or via two channels (each with a maximum of eight nozzles).
High precision editions also offer the following optional functionality:
- One flowmeter per channel for more accurate spraying
- Automatic liquid pressure and air pressure control
- Profinet support for full integration of your PLC
The AutoJet® E2150+ Spray System can be used as an autonomous spray system or can be integrated into any existing process control system.
AutoJet® E2150+ Spray Controller Spray Layouts
Single Channel
![](/en-ae/-/media/dam/industrial/europe/website-images/products---static-other-sizes/featured_card_single_channel-612x400.png?h=400&w=612&la=en-AE&hash=0B6356360990C1EAF24EAC2736C50285)

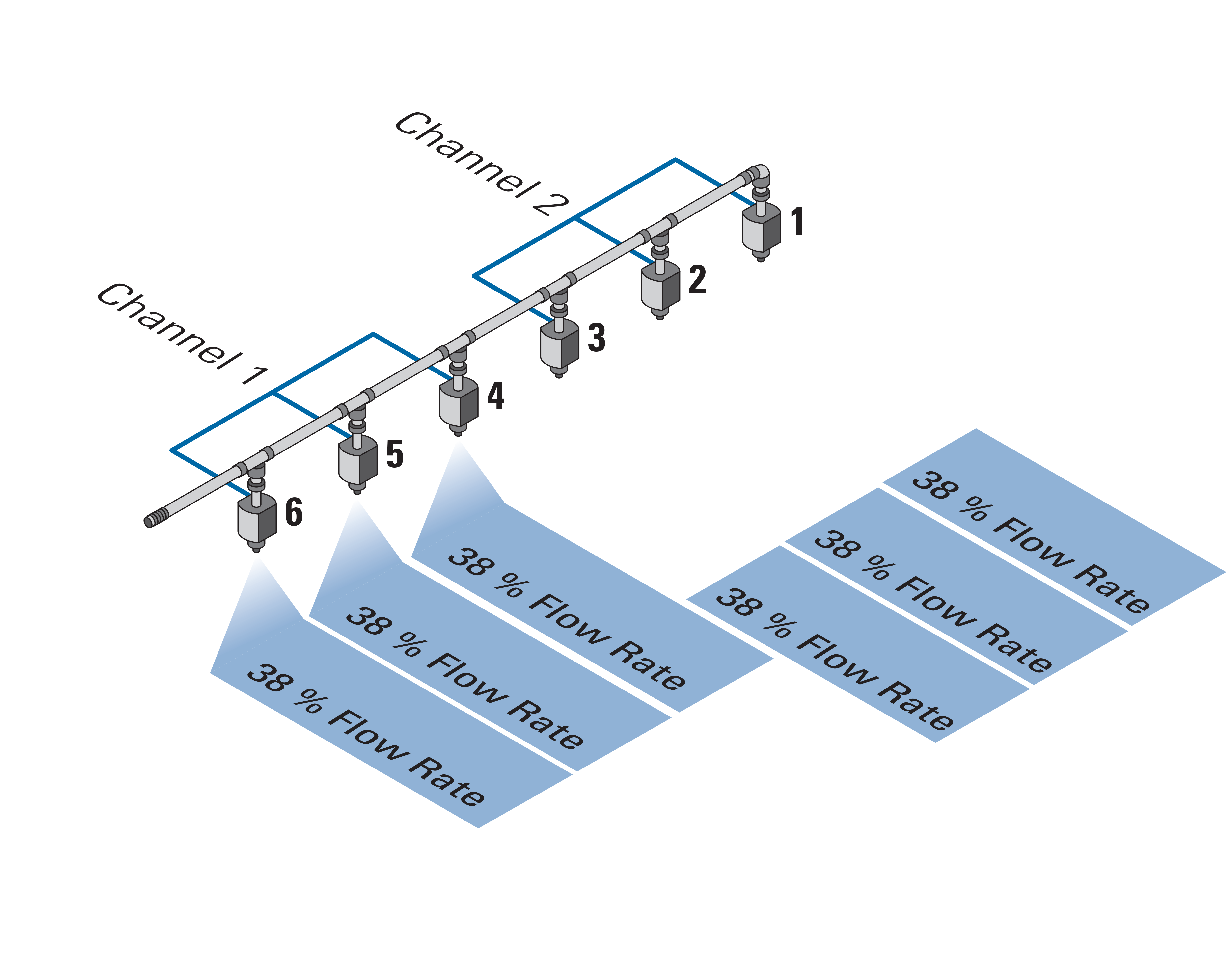

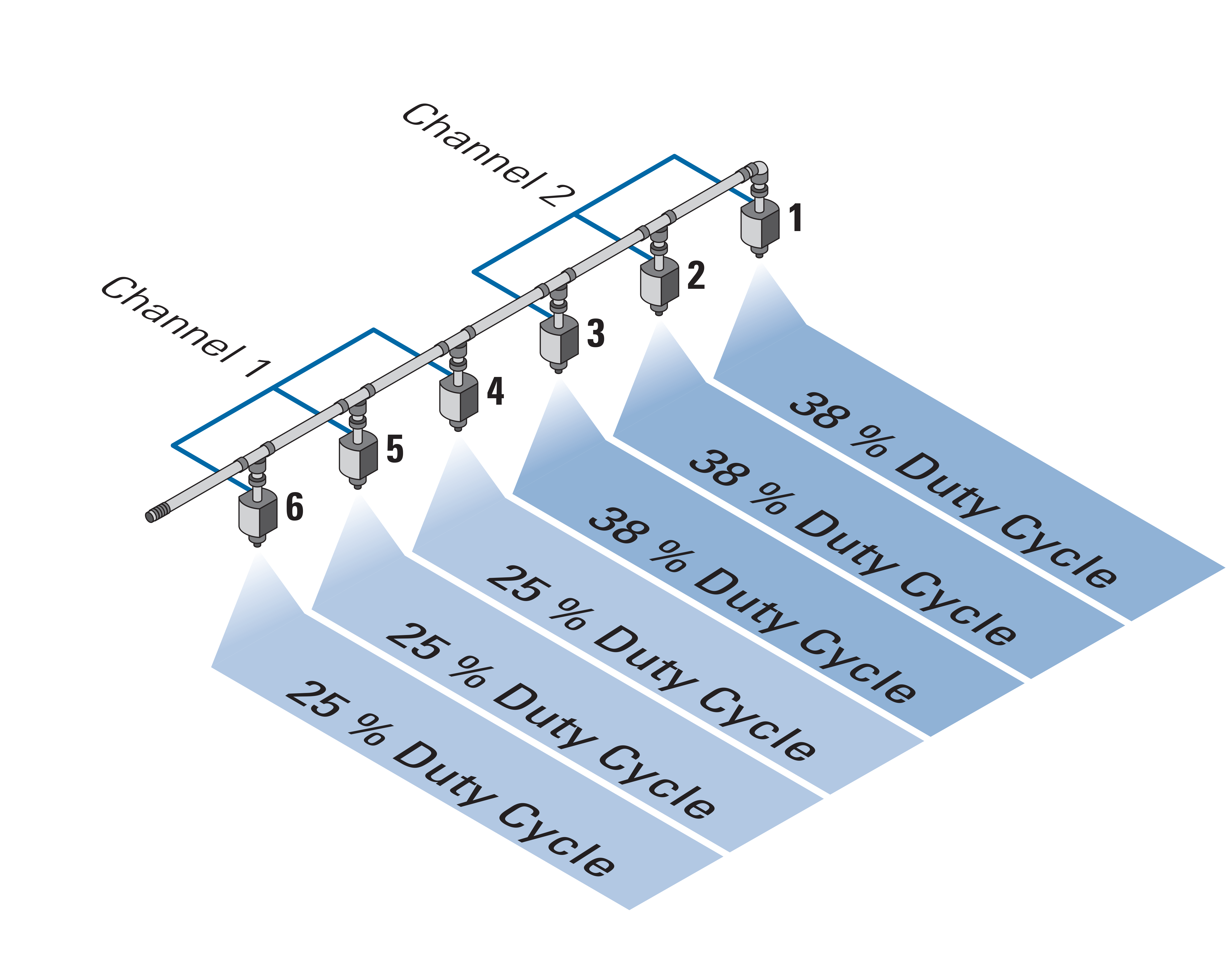

Dual Channel
![](/en-ae/-/media/dam/industrial/europe/website-images/products---static-other-sizes/featured_card_dual_channel-612x400.png?h=400&w=612&la=en-AE&hash=70BFE1A585E883C343D7CA95930F43CE)
Single Channel with Zoning
![](/en-ae/-/media/dam/industrial/europe/website-images/products---static-other-sizes/featured_card_single_channel_with_zoning-612x400.png?h=400&w=612&la=en-AE&hash=C070FE2ED13886C7CE325CB192B3DA1D)

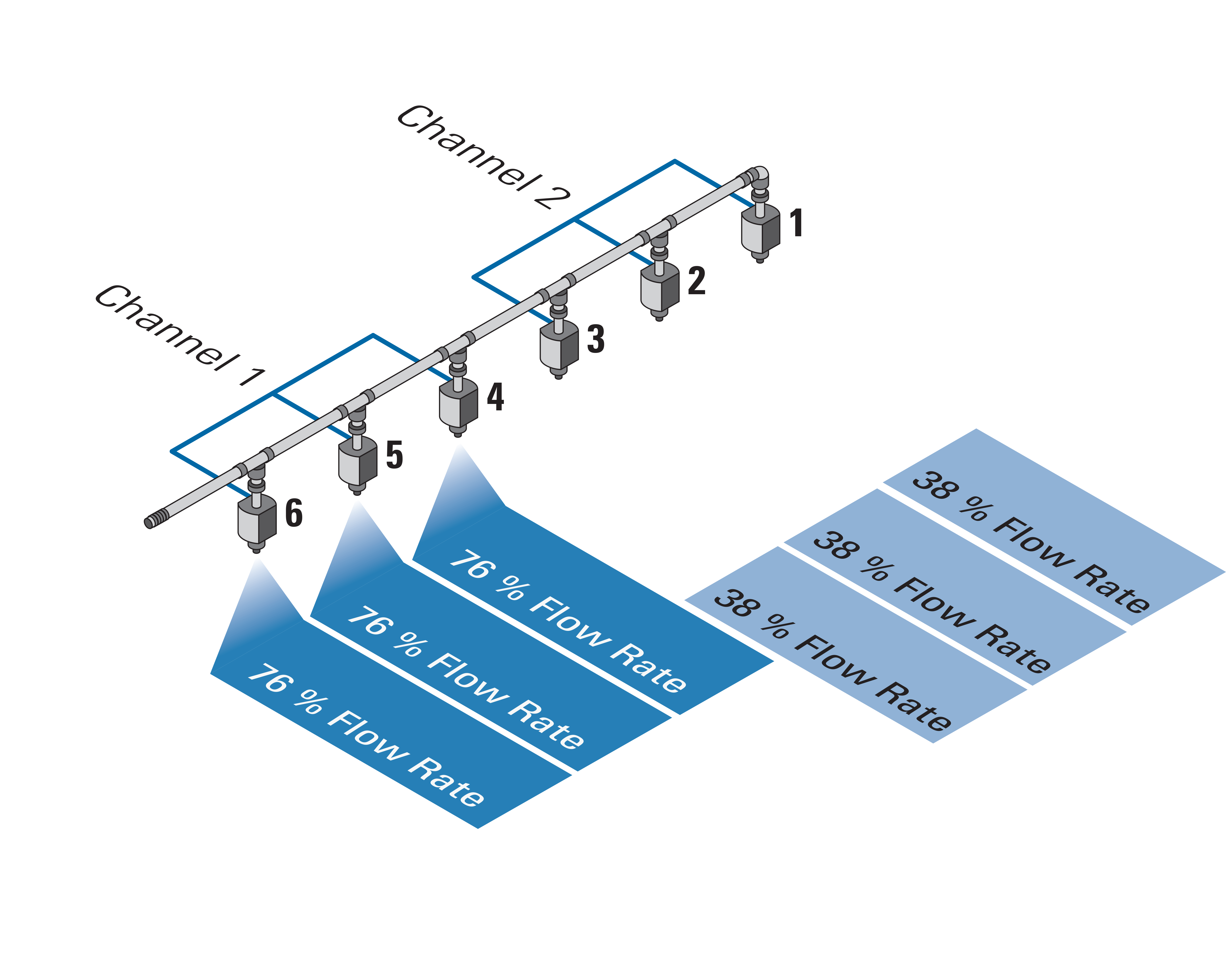

Dual Channel with Zoning
![Dual Channel](/en-ae/-/media/dam/industrial/europe/website-images/products---static-other-sizes/featured_card_dual_channel_with_zoning-612x400.png?h=400&w=612&la=en-AE&hash=FFC310C587EAC9BBCEB1A7B2061FC0FF)
