Winery Spray Technology
Winery Spray Technology
Spraying System Co.’s products allow you to improve efficiency in your facility without compromising quality. We have a wide range of solutions to help shorten cleaning and drying time, sanitize hard-to-reach areas, and reduce the use of costly chemicals. We have recently expanded our family of products to include Cloud-Sellers to offer even more cleaning solutions.
Improve Quality, Reduce Energy Consumption and Save Water

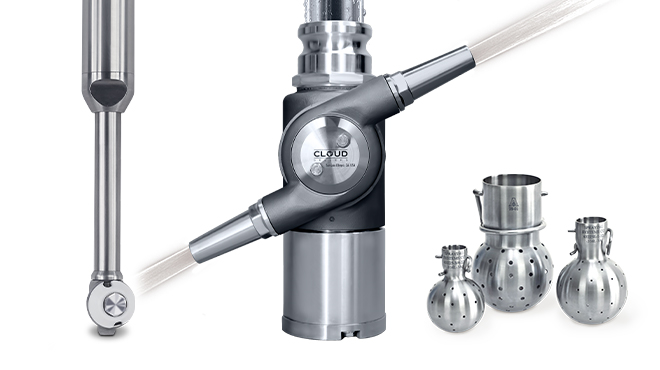

Tank Cleaning Equipment
The Cloud-Sellers® 360 Fluid-driven Tank Cleaner for tanks up to 100’ (30 m) in diameter – this powerful fluid-driven machine offers the most consistent impact over the entire pressure range. High-impact cleaning removes even the most stubborn residues efficiently and effectively so tanks can be returned to service quickly.
Available with 2 or 3 nozzles, the Model 360 features gear ratio options and food-grade oil-lubricated or flow-through gearbox designs for maximum cleaning flexibility, predictability, and minimum cleaning cycle times.

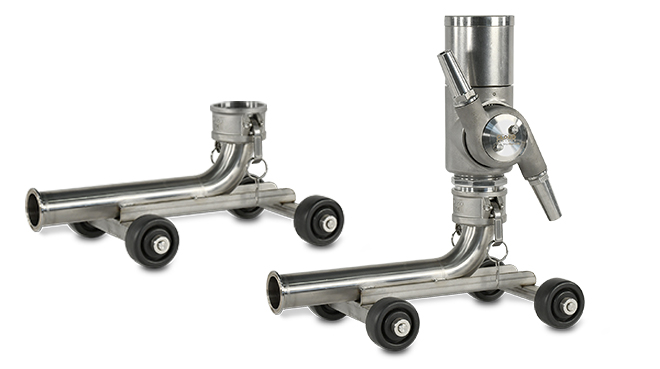

Cloud-Sellers Wheeled Cart
Mobile wheeled cart for the Cloud-Sellers 360 tank cleaning nozzle. Allows bottom-up cleaning from the manway entry with easy installation, portability, and flexibility.
- Stainless steel construction and non-marking wheels
- Works with the Cloud-Sellers 360 fluid-driven tank cleaner
- Optional configuration for TankJet® 80 and TankJet 65 fluid-driven tank cleaners
The 15HP Pump Cart high-pressure, high-volume unit, is designed to maximize the impact of your tank cleaning machine. We can save time and money and improve employee safety while ensuring optimal fluid transfer, reducing operational costs, and increasing productivity.
When it comes to tank cleaning and sanitizing, many companies are unwittingly costing themselves significant amounts of time and money due to one hidden problem: low pump pressure. Tank cleaning operations using less than 100 PSI result in running equipment longer, but longer run times come at a cost. Time is money. Running a pump at maximum output for extended periods will require more maintenance, a greater chance of complete breakdowns, and expensive repairs. Our pump cart can solve these problems. The 15HP pump cart uses a Waukesha model #C218 sanitary centrifugal pump and is mounted on a PEI stainless steel 4-wheel pump cart with 50’ of power cord.

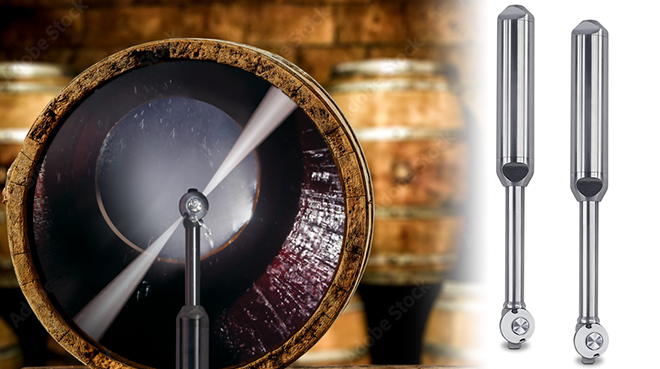

The TankJet® 50 Fluid-driven Tank Cleaner is a powerful cleaner that can be used with a high impact solid stream or narrow angle diffused solid stream nozzle tips. It is ideal for wine barrels, food and beverage barrels, and small tanks and containers.
Increase portability of your TankJet 50 and save time with the Cloud-Seller Pump Cart. This cart makes your tank cleaning nozzle easily transported between applications.
Cleaning Guns
CU150A GunJet® spray guns offer versatile high-impact, low-pressure performance. Guns feature an adjustable spray pattern – from hollow cone to solid stream – and interchangeable orifice caps for quick and easy change of spray capacity. Designed for food plants with stainless steel and white corrosion-resistant outer cover.
Make your work easier with our hose reel which allows your hose to always remain connected with unrestricted flow at minimum pressure loss. Available as spring or manual rewind. We also have flexible and lightweight hoses available to fit every need.
See the full line of GunJets >>

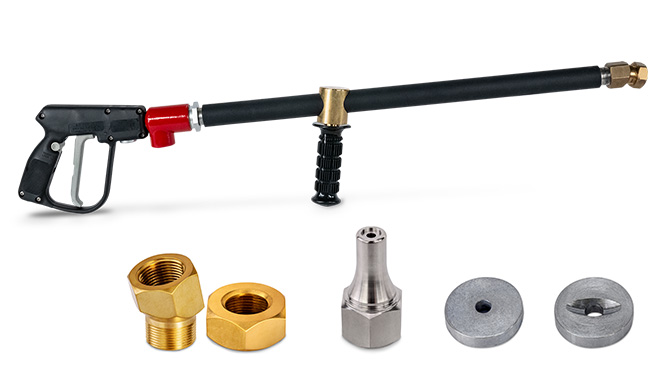

Wash Down GunJet® for use with Steam Injectors
The B Steam Injector combines available steam with low temperature water to create a pressurized hot water washdown. The unit pressurizes and feeds a 114570 Washdown GunJet assembled with a Disk or VeeJet® nozzle to provide a solution to clean stubborn residue from a variety of equipment. In addition, the 114570 Washdown GunJet is ergonomic and lightweight. A trigger on the GunJet allows the operator to shut-off the water flow at the nozzle preventing accidental contact with hot water.
Features and Benefits
- Hand squeeze control automatically shuts off pressure when released.
- Lance grip insulated from heat
- Choose from multiple spray pattern nozzles:
- Solid Spray Disk. Solid stream disk spray pattern
- Flat Spray Disk. Flat fan disk with 35° spray pattern
- Solid Spray Nozzle. Round concentrated jet spray pattern for max. range and impact. 3/4” NPT (M)
- Nozzle Body 15° and Cap. Use with discs ordered separately

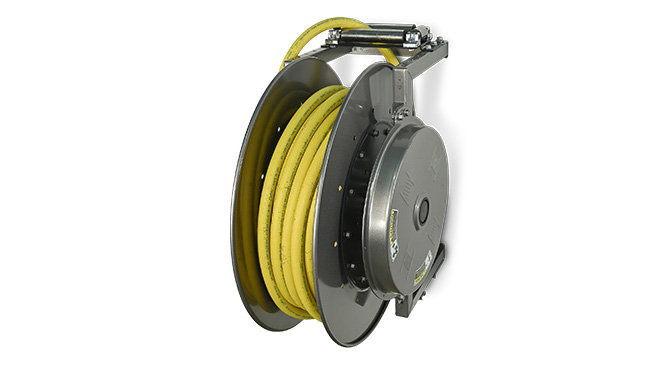

Hose Reels
Our hose reels allow for the hose to remain connected at all times to the jet feed source and unrestricted solution flow at minimum pressure loss. Available in manual or spring rewind.
Hoses
3/4" wire braided hose with spring hose protectors and 3/4" NPT couplings. Flexible, lightweight, and able to withstand heat transmitted from hot liquid solutions. Special outer cover extends hose life through superior abrasion and chemical resistance. The hose is static bonded at each end to ground the reinforcement to the coupling. Maximum 1000 psi rating.
Drying and Blow-off
For superior drying or blow-off, you’ll find what you need in our WindJet® line. Some products use compressed air and others use clean heated air from a regenerative blower. All our WindJet solutions will help you dry more thoroughly and quickly, improve precision in blow-off operations and reduce compressed air use or eliminate it completely.

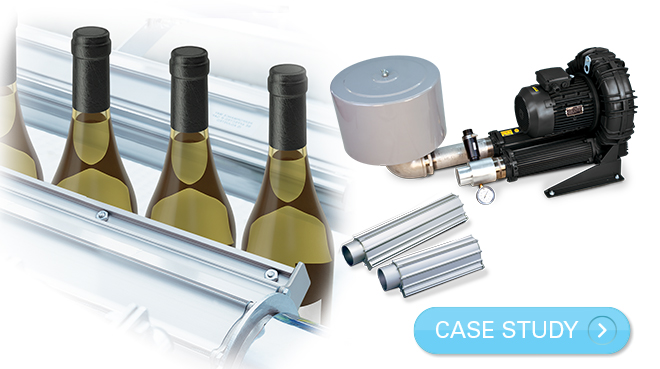

The WindJet Air Knife and Cannon Packages include a 15HP blower with an air knife and air cannon which powerfully dries the moisture on the necks and the caps of the bottles.
The WindJet Systems uses low-maintenance regenerative blowers to produce clean, heated air. The low-noise blowers are extremely energy-efficient. The air knives and air cannons deliver uniform, high-velocity air streams that dry the cans and bottles before printing.
See the full line of WindJets >>
Superior Service with Local Spray Experts Right Where You Need One
Need technical support from our team? Just tell us about your application and the specific issues you’re having. We’ll work with you to help you overcome the challenge. Many of our products are American Made so we can quickly order new parts to get your facility up and running.
