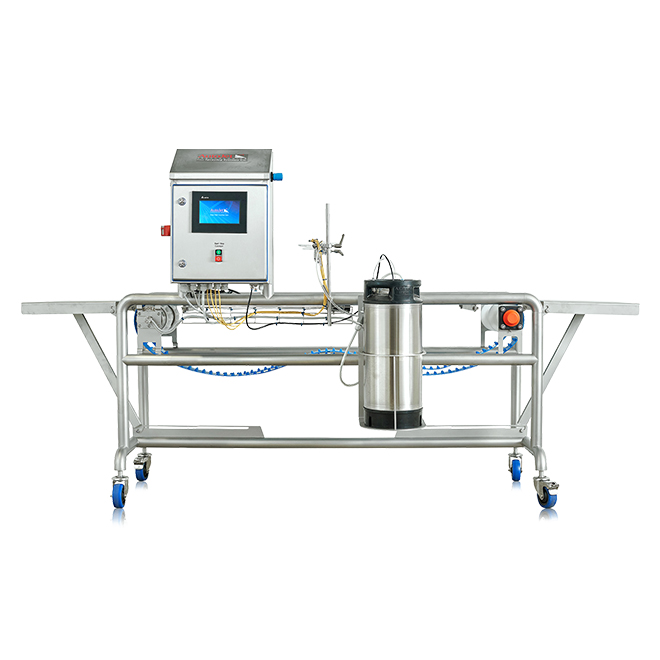

The AutoJet® BAV-20 AccuGlaze® is an autonomous glazing system with pressure tank and conveyor for bakeries.AutoJet® BAV-20 AccuGlaze® Autonomous Glazing System with Pressure Tank and Conveyor for Bakeries
- Pressure tank 20 liter
- Control panel:
- F1850+ food controller
- Speed control for conveyor
- Triggered by inductive sensor
- Low level switch
- PWM Modes: Fixed duty cycle
- Mobile hygienic frame
- Spray nozzle header with height adjustment
- Small footprint
- Available for plate width: 400mm or 600mm
- Hygienic design: easy wash-down
- Two folding plates for snap-in
- Configuration for plates (2 small belts) and objects (large belt)
- Conveyor belt without tension = safe operation
- Nozzles:
- 400mm: 2 to 6 PulsaJet® Nozzles
- 600mm: 2 to 8 PulsaJet® Nozzles
- Consumables:
- Compressed air (6 bar)
- Electricity (230 VAC)
