AutoJet® PHM-50
Systems for food applications
AutoJet® PHM-50
The AutoJet® PHM-50 is an oiling / lubrication system with open tank for spraying all kinds of viscous liquids.The AutoJet® PHM-50 is ideal for all kinds of viscous liquids especially lubricating oils using PulsaJet® spray nozzles or any other automatic spray nozzle by Spraying Systems. The tank is double jacketed as well as the spray header. The liquid is permanently circulating by a VFD driven screw pump. The open tank allows convenient refill during production, while an automatic refill is available as an option.

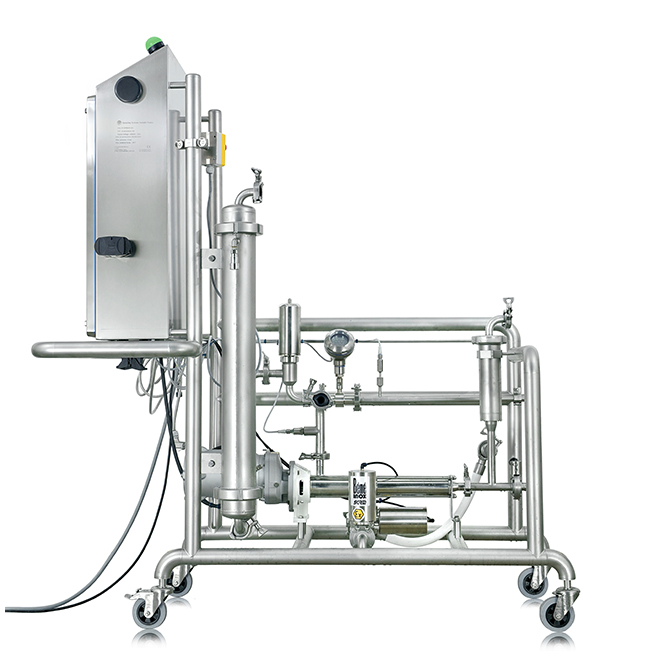

AutoJet® PHM-50 Oiling / Lubrication System with Open Tank
- PLC/2850+ Controller
- 50 liter open tank
- VFD controlled screw pump without pulsation
- Liquid circulation
- Back pressure valve
- Electronic atomizing air pressure regulation (for air atomizing nozzles)
- Temperature control:
- Internal water heating circuit for tank and spray header
- Non-heated circulation tubes
- Analog level control
- Automatic refill (option)
- PWM Modes:
- Fixed duty cycle
- Grams per cavity
- Consumables:
- Compressed air
- Electricity (480 VAC)
- Input: Trigger, Remote Setpoint, etc.
- Output: Up to 8 PulsaJet® nozzles, air atomizing nozzles, fault signal, etc.
Ideal for these applications:
Release Agent
