Mini LSP
Mini LSP

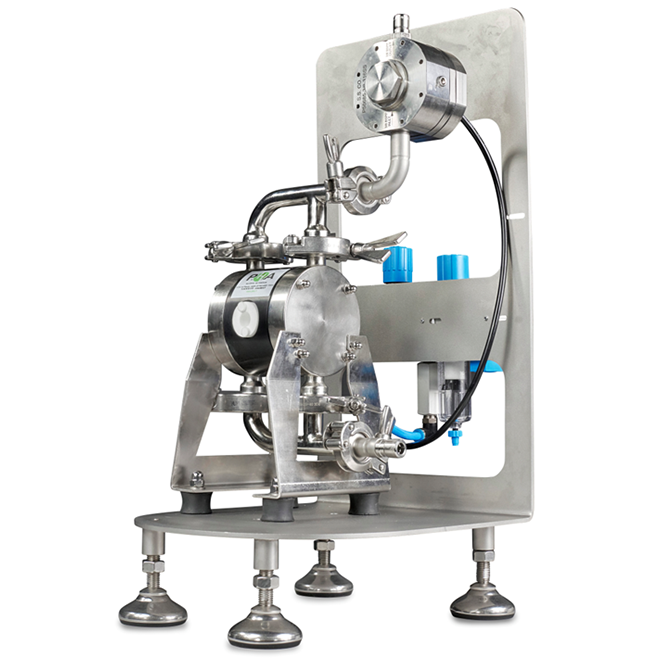

Pneumatic pump liquid distribution system for your spraying process.This liquid pressure pumping system provides a stable pressure for your spray nozzles.
The Mini LSP is equipped with a pump and a 58685 double diaphragm liquid pressure regulator from SSCo. Its control is entirely pneumatic, this way it allows a stabilized working pressure of 0,5 to 5 bar.
![Mini LSP](/en-gb/-/media/dam/industrial/europe/website-images/other/other_mini_lsp-660x660.png?h=660&w=660&la=en-GB&hash=8C2F56E2C445B08B4D743A38E6CABAD5)
The Mini LSP is designed in 316 stainless steel and meets the European standard 1935/2004. The connections are in mini-clamp for easy cleaning and hygienic plug-in fittings allow for an easy connection of liquid hoses.
Simple and compact, the system can easily be moved and integrated under most conveyors.
The Mini LSP is available in 3 versions for use with different types of nozzles.
The system can be combined with the AutoJet® E1850+ or F1850+ to allow for electronic control of up to 8 PulsaJet® or other automated hydraulic nozzles.
Commonly used in these spray applications:
- Bio Protection
- Alcohol
- Release agent
- Glazing
- Liquid smoke
![](/en-gb/-/media/dam/industrial/europe/website-images/other/other_mini_lsp_accessories_2-660x414.png?la=en-GB&hash=0E8C475A8DBD056DD8CBC05B20EE4DDB)
Accessories
The Mini LSP can be used with all our food-grade nozzles, including:
- PulsaJet® 10000 JJAU and AUH
- The D55500 or JAU air operated nozzles
