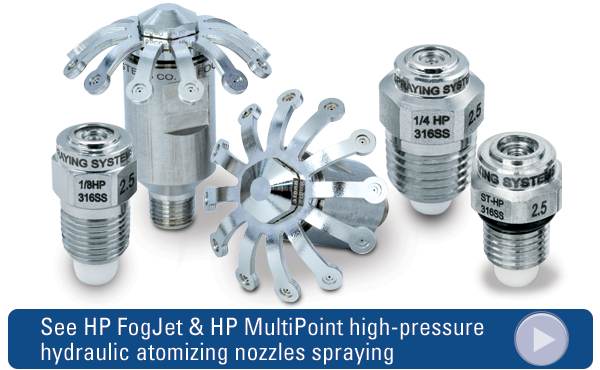

FogJet high-pressure, hydraulic atomizing nozzle that produces a streak-free, uniform hollow cone spray pattern. Very fine drops achieve misting performance.

• Better performance at lower pressures than conventional pressure-swirl and impact-style nozzles
• Lower operating pressures for reduced nozzle erosion and longer nozzle life
• Larger flow passages than impact-type nozzles for reduced clogging
• Smaller in size and flow than conventional hydraulic nozzles
• Dual filters: HDPE 85-micron replaceable filter and 200 mesh integrated filter – for reduced maintenance and longer life
• Available in a wide range of flow capacities and fluid line connections
• 30% - 40% reduction in drop size for faster evaporation
• Easy retrofit
• Increased versatility – smaller than conventional hydraulic nozzles, HP FogJet nozzles are easily integrated into applications where space is limited. For high-capacity applications, HP MultiPoint FogJet nozzles simplify installation and lower costs by having 12, 10 or 8 spray tips on a single body.

Liquid Strainers protect nozzles, valves and pumps from damaging debris and minimize clogging. Wire mesh options ensure the screening of particulates as small as 63 microns.

Liquid strainers:

• Reduce clogging in tank cleaners and tank cleaning nozzles
• Remove contaminants from liquid to ensure continuous movement of rotating spray heads
• Extend the wear life of nozzles, valves and pumps
• Wide range of options: heavy-duty, heavy-duty high pressure, self-cleaning, and a wide range of mesh size

Learn more in the Industrial Hydraulic Catalog (PDF)
