FogJet® Spray Nozzles
FogJet® Spray Nozzles
FogJet nozzles produce streak-free, uniform sprays using high pressure for atomization without use of compressed air.

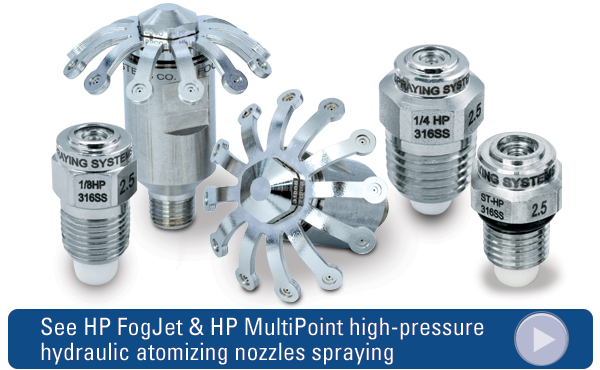

The Next Generation of High-Pressure Fogging Nozzles
FogJet high-pressure, hydraulic atomizing nozzle that produces a streak-free, uniform hollow cone spray pattern. Very fine drops achieve misting performance.
- Better performance at lower pressures than conventional pressure-swirl and impact-style nozzles
- Lower operating pressures for reduced nozzle erosion and longer nozzle life
- Larger flow passages than impact-type nozzles for reduced clogging
- Smaller in size and flow than conventional hydraulic nozzles
- Dual filters: HDPE 85-micron replaceable filter and 200 mesh integrated filter – for reduced maintenance and longer life
- Available in a wide range of flow capacities and fluid line connections
- 30% - 40% reduction in drop size for faster evaporation
- Easy retrofit
- Increased versatility – smaller than conventional hydraulic nozzles, HP FogJet nozzles are easily integrated into applications where space is limited. For high-capacity applications, HP MultiPoint FogJet nozzles simplify installation and lower costs by having 12, 10 or 8 spray tips on a single body.

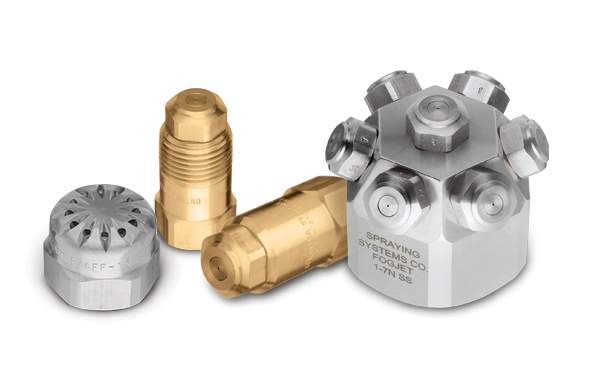

Standard FogJet Nozzles
Finely atomized sprays without the use of compressed air; ideal for fogging a larger area with a single nozzle.
- 7N and 7G nozzles produce a shower-like full cone wide-angle spray pattern
- FF nozzles produce a dense, narrow, hollow cone spray pattern
- 7N and 7G assemblies include a nozzle body and seven removable caps. Each cap has an internal core or vane which is easily removed for cleaning.

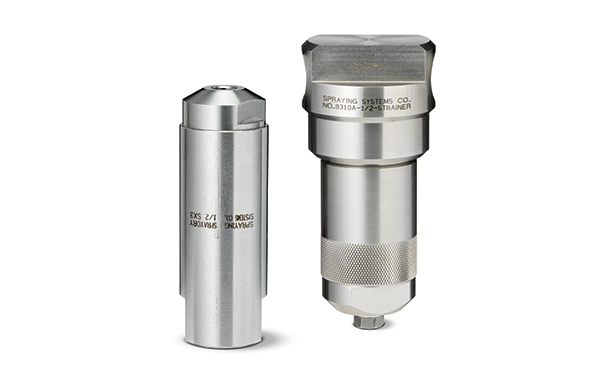

High-Pressure Strainers
Liquid Strainers protect nozzles, valves and pumps from damaging debris and minimize clogging. Wire mesh options ensure the screening of particulates as small as 63 microns.
Liquid strainers:
- Reduce clogging in tank cleaners and tank cleaning nozzles
- Remove contaminants from liquid to ensure continuous movement of rotating spray heads
- Extend the wear life of nozzles, valves and pumps
- Wide range of options: heavy-duty, heavy-duty high pressure, self-cleaning, and a wide range of mesh size
