Coker
![Coker Quench Sprays](/en-my/-/media/dam/industrial/europe/website-images/other/other_coker_quench_sprays_660x370.jpg?h=370&w=660&la=en-MY&hash=7ED5CE705E82458E9B9BA61C4C5EEBA6)

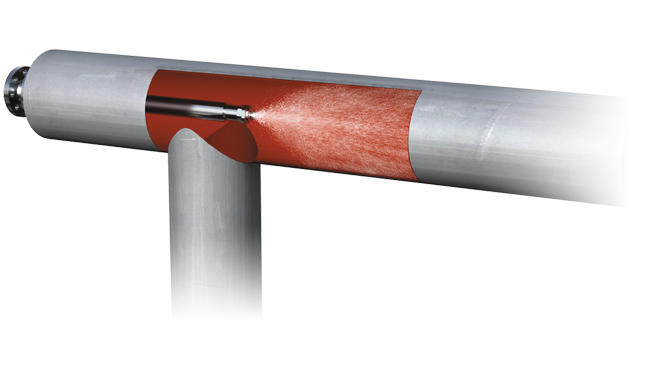

1. Quench Sprays
Problem: Slow the cracking reaction while preventing coke formation in the overhead line.
Best practice: Use Maximum Free Passage (MFP) FullJet® full cone spray nozzles to inject coker gas oil into the drum outlet tee to quench and slow the cracking reaction. The nozzles are available with a wide range of spray angles to ensure a thin liquid film is maintained on the walls. Open flow passages resist plugging and provide longer service life before maintenance is required.
![Coker defoaming quill](/en-my/-/media/dam/industrial/europe/website-images/other/other_coker_defoaming_660x370.jpg?h=370&w=660&la=en-MY&hash=EC8BC217D79CCEB6E6918F8D11112AFC)

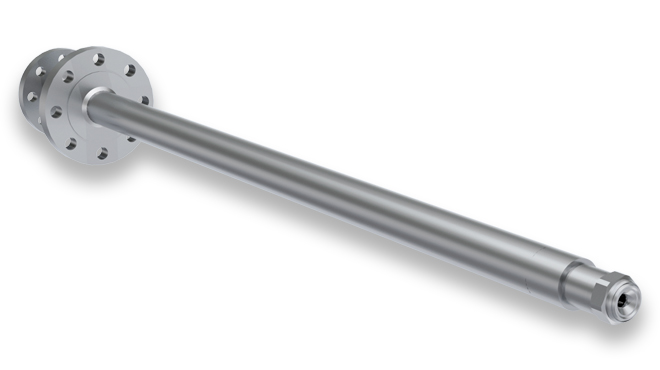

2. Defoaming
Problem: Foam elimination.
Best practice: Maximum Free Passage (MFP) FullJet® full cone spray nozzles feature a patented vane design that provides the largest free passage of maximum free passage nozzles to minimize clogging with uniform spray distribution. MFP FullJet nozzles provide excellent coverage at lower operating pressures.
![Coker overhead water wash](/en-my/-/media/dam/industrial/europe/website-images/other/other_coker_overhead_water_wash_660x370.jpg?h=370&w=660&la=en-MY&hash=E68EE978559568F33B0A2F1DEEB8ADD4)

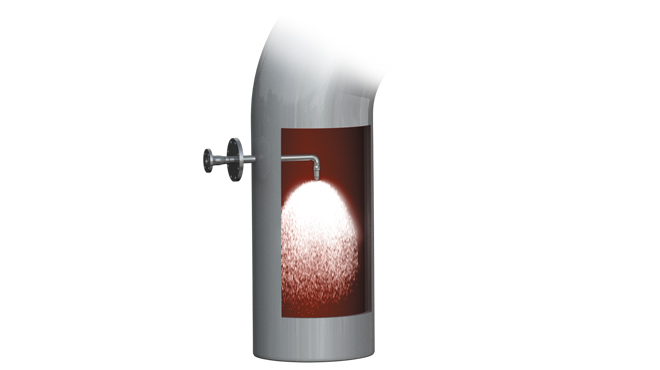

3. Overhead Water Wash
Problem: Dissolve salt deposits in the overhead vapor line.
Best practice: Use built-to-order spray injectors designed for the operating conditions of the overhead vapor line to ensure optimal performance. Instead of using flow rate and pressure drop, use Computational Fluid Dynamics (CFD) to determine the ideal droplet size, coverage and location of injection points to maintain at least 25% free water.
![Coker wash oil](/en-my/-/media/dam/industrial/europe/website-images/other/other_coker_wash_oil_660x370.jpg?h=370&w=660&la=en-MY&hash=6AF6B5094D558EF45A65B68FB935D7C8)

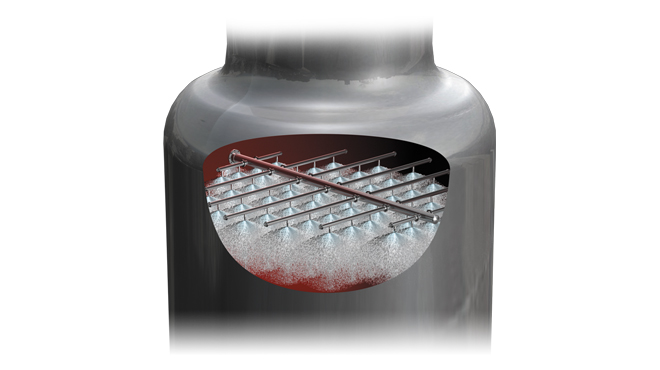

4. Wash Oil
Problem: Wash and cool hot vapors entering the fractionator from coke drums and eliminate wash oil carryover.
Best practice: Maximum Free Passage (MFP) FullJet® full cone spray nozzles effectively knock-out coke fines without clogging. The uniform spray pattern, consisting of large droplets, ensures quick and effective gas scrubbing and cooling.
